Object Inspector

The main features of Object Inspector are described in Main Window chapter.

Right click on selected object or objects in Object Inspector to access a pop-up menu for operations with selected objects.
For meaning of Group and Ungroup commands please see Main Menu / Objects chapter.

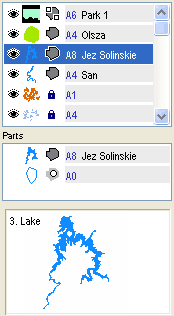

To select and manipulate openings or grouped objects, use the Part Inspector window beneath the Object Inspector window. It is not possible to select these parts directly on the Work Area.

To change order of objects in Object Inspector, select an object with a left click, depress the right mouse button and drag it to its new position in the list. Then release the right button and, from the menu that appears, choose whether the selection should be placed Before or After the item. You can choose also the Set Identical Parameters command to copy properties from one object to another of the same type. Double click on the object name to open the Properties window.

Zoom Level

Name & Comment

1. Eye icon for showing/hiding object, 2. Small picture of object, 3. Type of object, 4. Name and comment of object.









Object is visible. Left click on the icon to hide the object.









Object is invisible. Left click on the icon to show the object.









Object icon.









Object is Area (polygon).









Object is Opening (hole) in the Area. Openings are displayed in the Parts window.









Object is Line (polyline).









Object is land or depth contour (polyline).









Object is railroad (polyline).









Object is river (polyline).









Object is trail (polyline).









Object is road (polyline) - not routable.









Object is polyline of road type (not routable), with a road sign.









Object is Point of Interest (POI) with empty address fields.









Object is Point of Interest (POI) with address.









Object is City.









Object is Map Feature.









Object is Exit.









Polyline is routable road.







Polyline is routable road with Oneway flag.







Polyline is routable road with Toll Road flag.







Polyline is routable road with No Left Turn flag.







Polyline is routable road with No Right Turn flag.







Polyline is routable road with No U-Turn flag.







Polyline is routable road with Access Restriction flag.









Object is composed of several other objects that are grouped.
